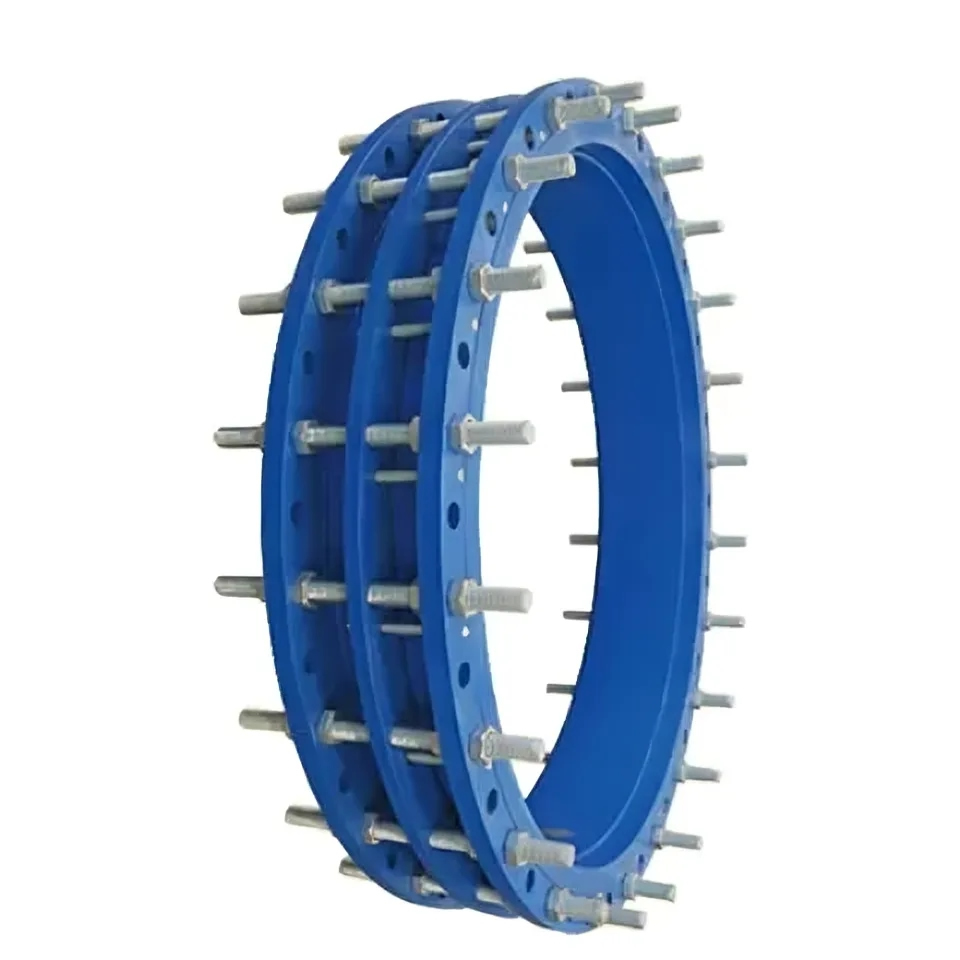

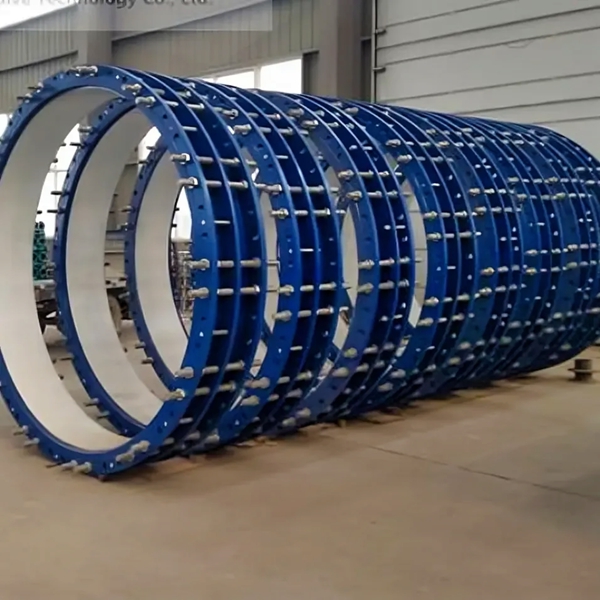

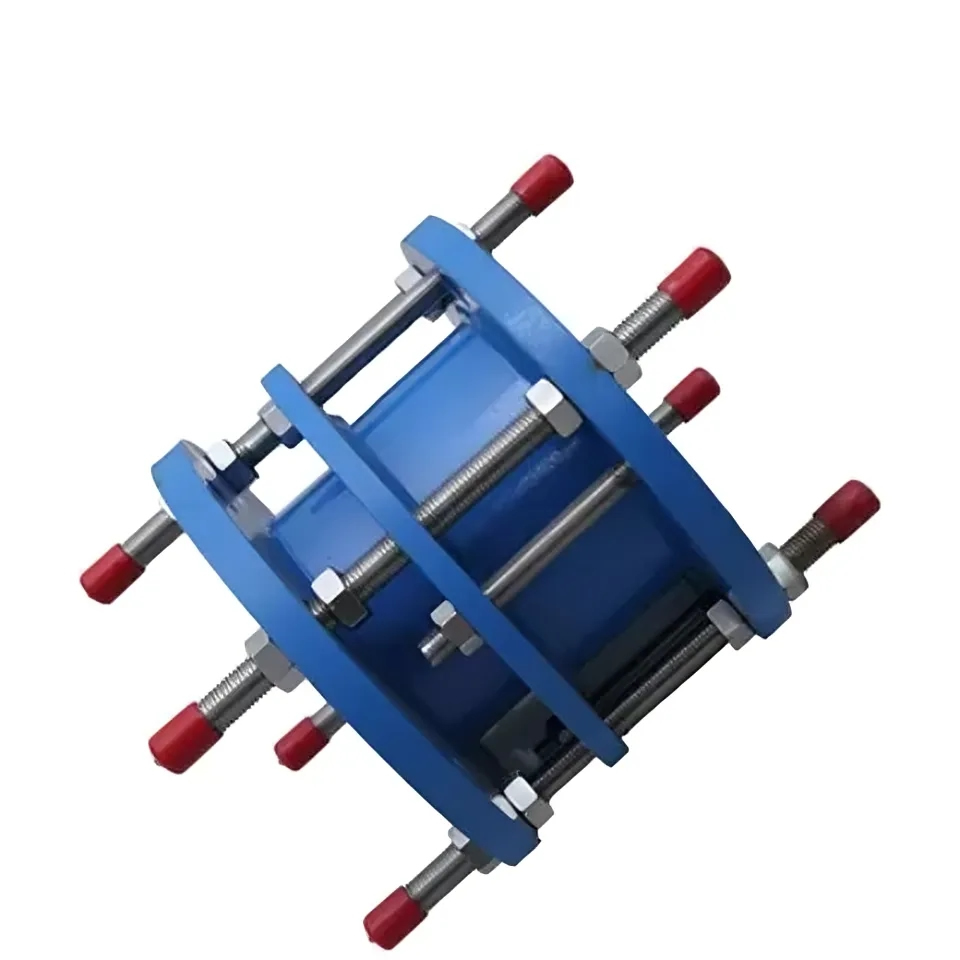

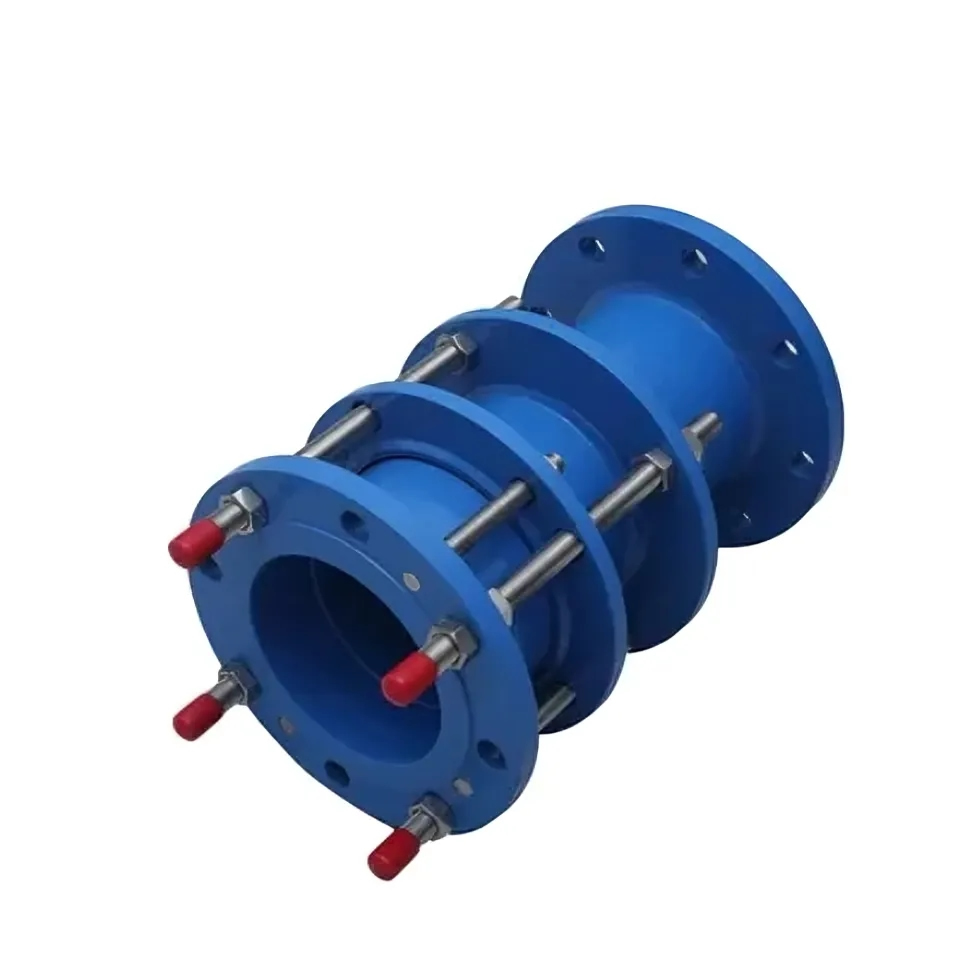

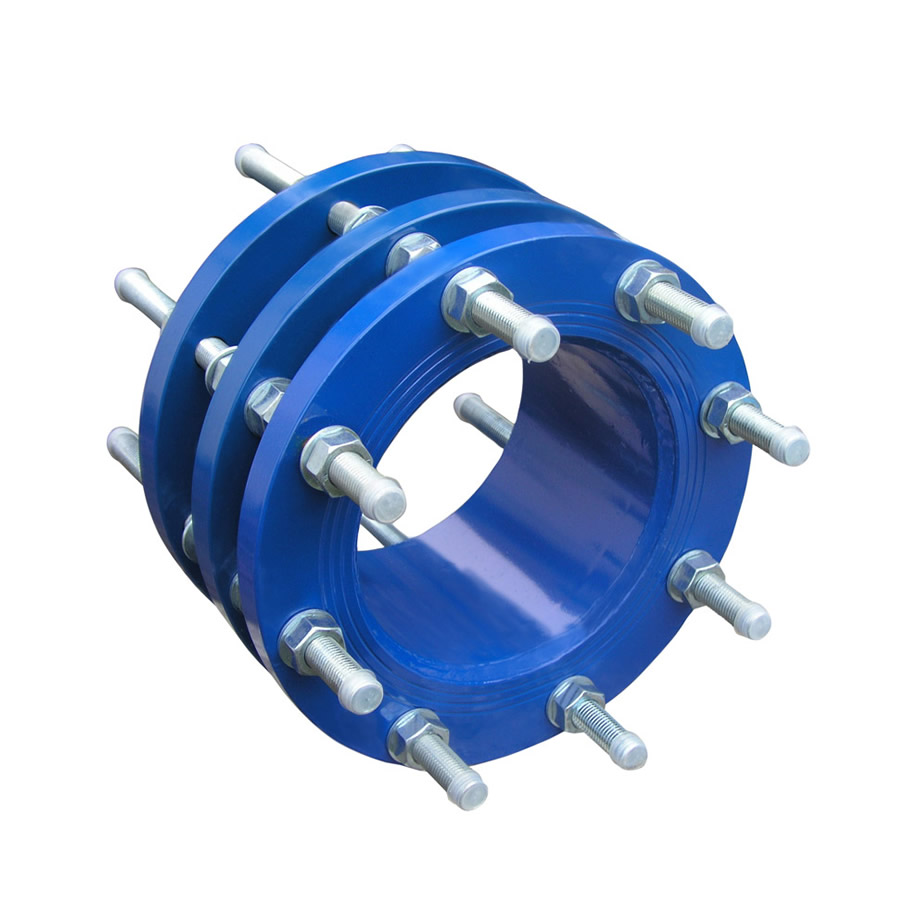

Dismantling Joint Series C2F

Model No:

Corrosion resistant construction;

Studs are located on every flange hole;

Tie rods are required from the upstream todownstream sides of the pipe equipment installation

Details

Specification

Request a Catalog

FAQ

Product Details

The Galvanized Steel Joint Sleeve is designed to meet the highest standards of quality and durability. It is capable of withstanding extreme temperatures and harsh environments, making it an ideal choice for a wide range of applications. The Steel Joint is available in a variety of flange standards, including DIN PN10, PN16, PN25, ANSI 150LB, 300LB, and JIS 10K, ensuring that it can be used in a variety of settings and scenarios.

Whether you are working on a large construction project or simply need a reliable connector for your plumbing system, the Steel Joint is an excellent choice. Its high load capacity, durable construction, and versatile design make it a popular choice among professionals in a variety of industries. So if you are looking for a reliable and efficient connector that can handle heavy loads and withstand extreme conditions, the Steel Joint is the perfect solution.

Specification

No.	Name	QTY	Material
1	Main body	1	QT450-10, Q235A
2	Seal ring	1	NBR, CR, EPDM
3	Gland	1	QT450-10, Q235A
4	Limited short pipe	1	Q235A
5	Bolt	n	Q235A, 35#
6	Nut	n	Q235A, 20#

inal diameter	Outer diameter Dw of pipe	Size of flange connection				Installation size	Regulation movement	Quality/kg
		Outer diameter D of flange	Diameter D1 of central circle in the bolt hole	Diameter of bolt hole
		Outer diameter D of flange	Diameter D1 of central circle in the bolt hole	n/unit	do
65	76	160	130	4	14	200	20	11.8
80	89	190	150		18			13.5
100	114	210	170					18.6
125	140	240	200	8				23.8
150	168	265	225					30.4
200	219	320	280					36.9
250	273	375	335	12				49.6
300	325	440	395		22	220	25	61.5
350	377	490	445					79.3
400	426	540	495	16				91.2
450	480	595	550	16				104.1
500	530	645	600	20				123.2
600	630	755	705	20	26	240		169.8
700	720	860	810	24	26	240		208.9
800	820	975	920		30	350	30	346.1
900	920	1075	1020					380.6
1000	1020	1175	1120	28				438.8
1200	1220	1405	1340	32	33	370	30	646.7
1400	1420	1630	1560	36	36	370		843.6
1600	1620	1830	1760	40	36	380		1189.7
1800	1820	2045	1970	44	39	380		1394.8
2000	2020	2265	2180	48	42	400		1665.5
2200	2220	2475	2390	52				2056.7
2400	2420	2685	2600	56				2350.1
2600	2620	2905	2810	60	48	450	40	2720.4
2800	2820	3115	3020	64				3053.2
3000	3020	3315	3220	68				3460.3
3200	3220	3525	3430	72				3912.6

FAQ

What's the DN and PN?

DN (Nominal Diameter) is a standardized size label for pipes/fittings (approximate ID for compatibility, not exact dimension). PN (Nominal Pressure) is the rated pressure capacity (usually in bar, e.g., PN16 = 16 bar). Both specify size and pressure resistance in piping systems.

What's the material?

"Material" refers to the substance or matter from which something is made, such as metal, plastic, wood, etc.

What's the connection(flange or thread)?

"Connection" here refers to how components are joined. Flange uses flat plates with bolts, and thread (threaded connection) uses screw-like ridges for assembly, like in pipes or fittings.

What's the standard(ANSI, DIN, BS, JIS)?

These are industrial standards organizations: ANSI (USA): American National Standards Institute. DIN (Germany): Deutsches Institut für Normung. BS (UK): British Standards. JIS (Japan): Japanese Industrial Standards. They set technical specifications for products (e.g., pipes, flanges, machinery).

What's the medium working with?

"Medium working with" typically refers to the substance or material that flows through or interacts with a system (e.g., pipes, equipment), such as water, gas, oil, chemicals, or air.
