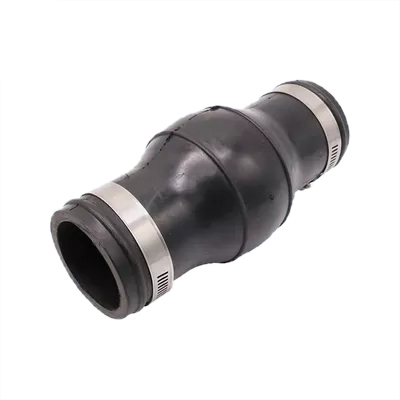

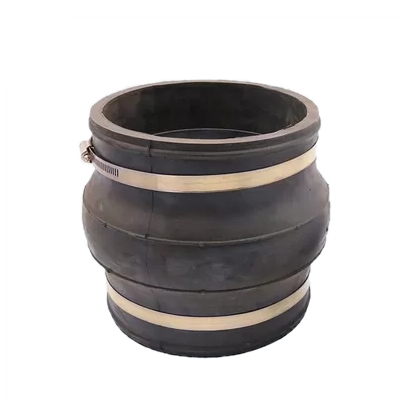

Clamp Type Rubber Joint

Model No:

Small size and light weight: easy to install and disassemble, saving space and manpower.

Good elasticity: It can absorb the vibration and displacement of the pipeline, reducing the noise and vibration of the pipeline system.

Strong sealing performance: The sealing performance between the rubber ball and the pipeline is good, effectively preventing medium leakage.

Corrosion resistance: It can adapt to the transportation of different media and has a certain degree of corrosion resistance.

Details

Specification

Request a Catalog

FAQ

Product Details

Our Clamp Type Rubber Joint is a type of rubber expansion coupling that is flexible and can withstand the rigors of various media such as air, water, sewage, acid, oil, and more. It is designed to absorb vibration, noise, and shock that are commonly encountered in pipelines.

Our Clamp Type Rubber Joint is categorized as a flexible rubber connector that is easy to install and maintain. It is designed to provide a leak-free and secure connection between pipes and equipment. It is made of high-quality materials that are resistant to wear, corrosion, and chemicals.

Specification

Product Name:	Clamp Type Rubber Joint	Support And Services:	Technical Support, Troubleshooting And Technical Inquiries, Warranty Policy, Packing And Shipping, FAQ
Length:	Mm	Usage:	Joining Pipe Lines
Clamp Material:	SS304, SS316 Etc	Media:	Air, Water, Sewage, Acid, Oil, Etc.

Diameter DN		Length mm	Axis displacement				Radial displacement		Deflexion displacement
Diameter DN			TYPE 1		TYPE 2		Radial displacement		Deflexion displacement
mm	inch		Extension	Compression	Extension	Comgression	TYPE 1	TYPE 2	TYPE1	TYPF 2
32	11/4"	90	6	10			9		±7.5°
40	11/2”	95	7	10			9		±7.5°
50	2"	105	7	10			10		±7.5°
65	21/2”	115	7	13			11		±7.5°
80	3"	135	8	15			12		±7.5°
100	4"	150	10	19			13		±7.5°
125	5"	165	12	19			13		±7.5°
150	6"	180	12	20			14		±7.5°
200	8"	210	16	25	30	35	22	25	±7.5°	±10°
250	10"	230	16	25	30	40	22	25	±7.5°	±12°
300	12"	245	16	25	30	40	22	25	±7.5°	±12°
350	14"	255	16	25	35	45	22	30	±7.5°	±12°
400	16"	255	16	25	35	45	22	30	±7.5°	±12°
• Special size and length can be customized for you.

FAQ

What's the DN and PN?

DN (Nominal Diameter) is a standardized size label for pipes/fittings (approximate ID for compatibility, not exact dimension). PN (Nominal Pressure) is the rated pressure capacity (usually in bar, e.g., PN16 = 16 bar). Both specify size and pressure resistance in piping systems.

What's the material?

"Material" refers to the substance or matter from which something is made, such as metal, plastic, wood, etc.

What's the connection(flange or thread)?

"Connection" here refers to how components are joined. Flange uses flat plates with bolts, and thread (threaded connection) uses screw-like ridges for assembly, like in pipes or fittings.

What's the standard(ANSI, DIN, BS, JIS)?

These are industrial standards organizations: ANSI (USA): American National Standards Institute. DIN (Germany): Deutsches Institut für Normung. BS (UK): British Standards. JIS (Japan): Japanese Industrial Standards. They set technical specifications for products (e.g., pipes, flanges, machinery).

What's the medium working with?

"Medium working with" typically refers to the substance or material that flows through or interacts with a system (e.g., pipes, equipment), such as water, gas, oil, chemicals, or air.
